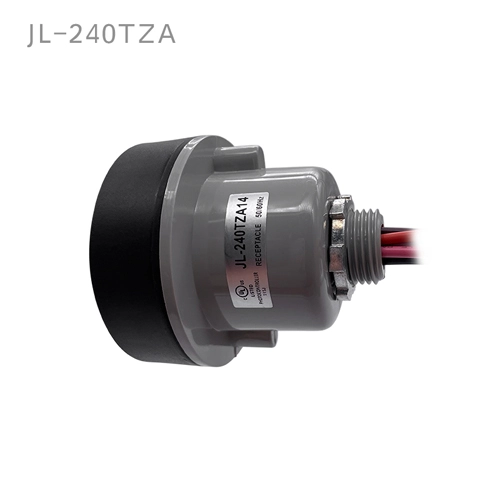

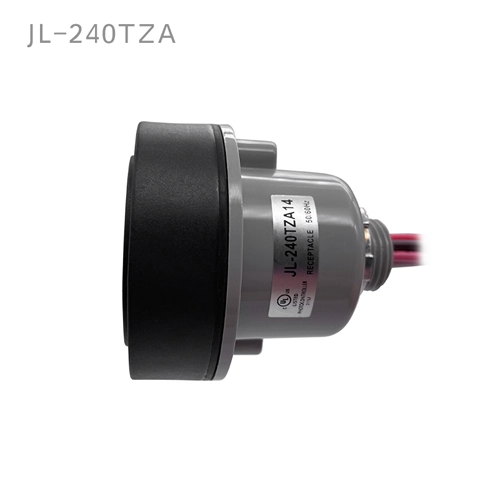

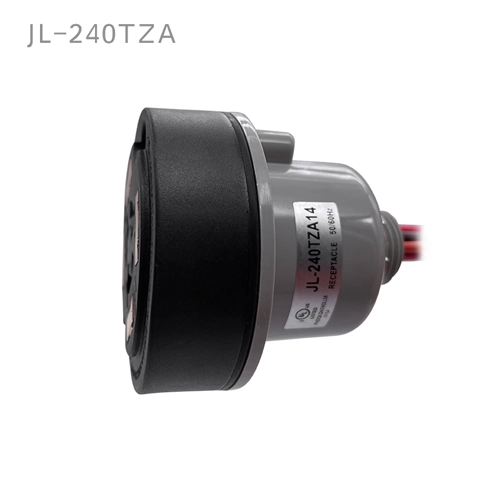

Name: JL-240TZA External Mounting 7-Pin NEMA Socket
Brand: Shanghai Long-Join Intelligent Technology Inc.

JL-240TZA External Mounting 7-Pin NEMA Socket Overview:

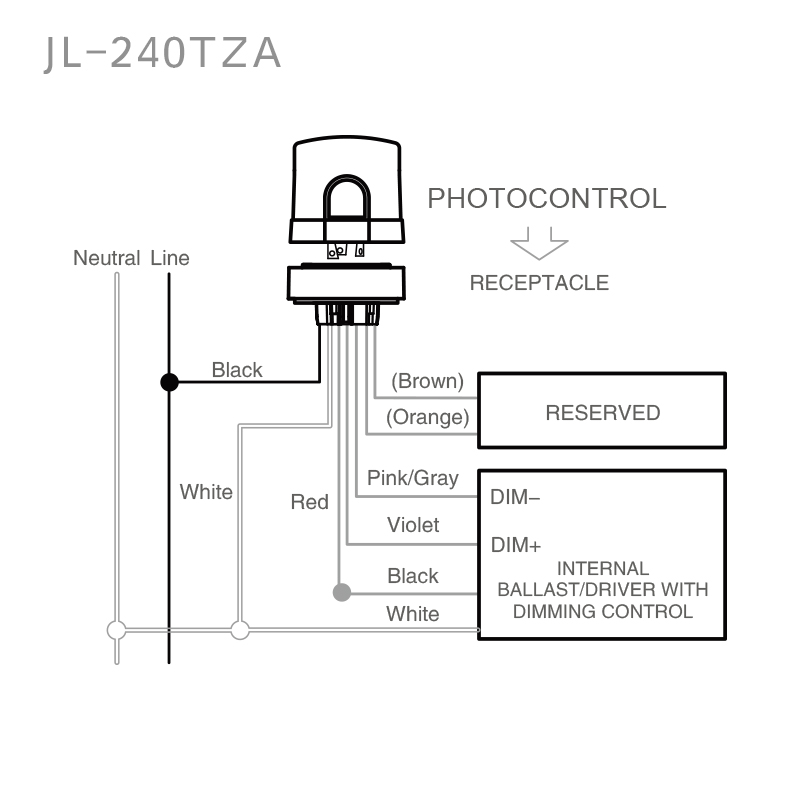

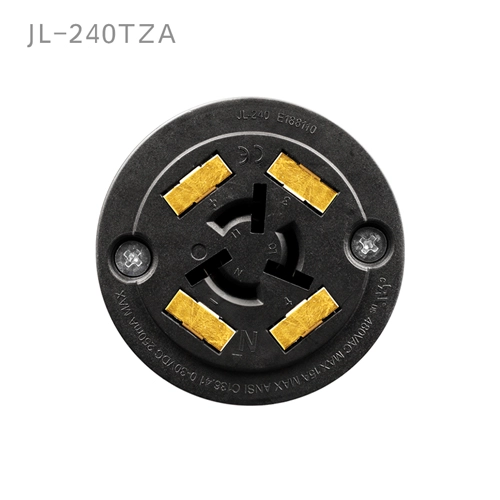

The JL-240TZA twist-lock photocell socket is specifically designed for outdoor lighting fixtures to accommodate twist-lock photocells for controlling LED lighting. This product is equipped with four gold-plated contact tabs on its top surface, which are compatible with the spring contacts of twist-lock photocells as per ANSI C136.41, and it also includes four signal wires at the back. For on-site retrofit projects, the JL-240TZA comes with a back cover and outdoor cable, ensuring ease of installation. The product conforms to the standards for insert and twist-lock photocells set by ANSI C136.10, ANSI C136.41, and ANSI/UL773 for area lighting applications.

JL-240TZA External Mounting 7-Pin NEMA Socket Specifications

Model No.	JL-240TZ
Applicable Volt Range	0~480VAC
Rated Frequency	50/60Hz
Load Rating	15A
Signal Control	0-30 VDC, 250 mA Max
Lead	16AWG/14AWG （Non-UL） 6" min
Ambient Temperature	-40°C ~ +70°C
Related Humidity	96%
Outdoor Wiring Cable	●
Certifications	ANSI C136.41-2013
