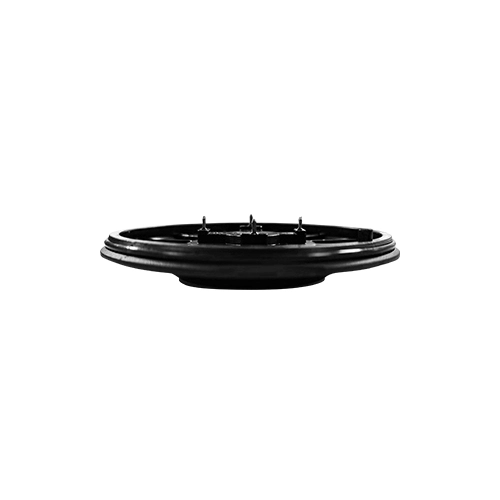

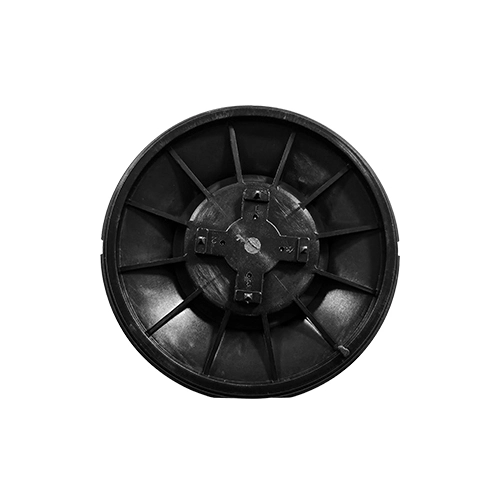

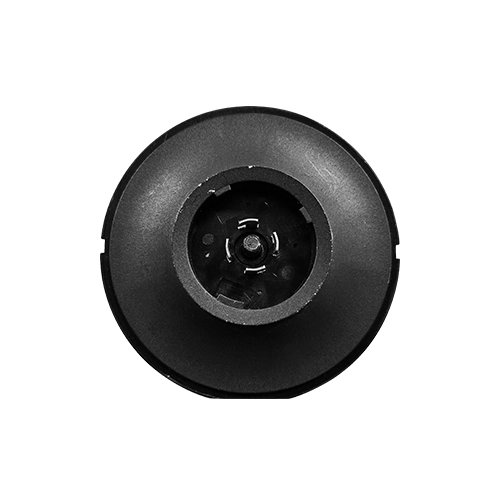

JL-741J Zhaga Interface Light Controller Cover

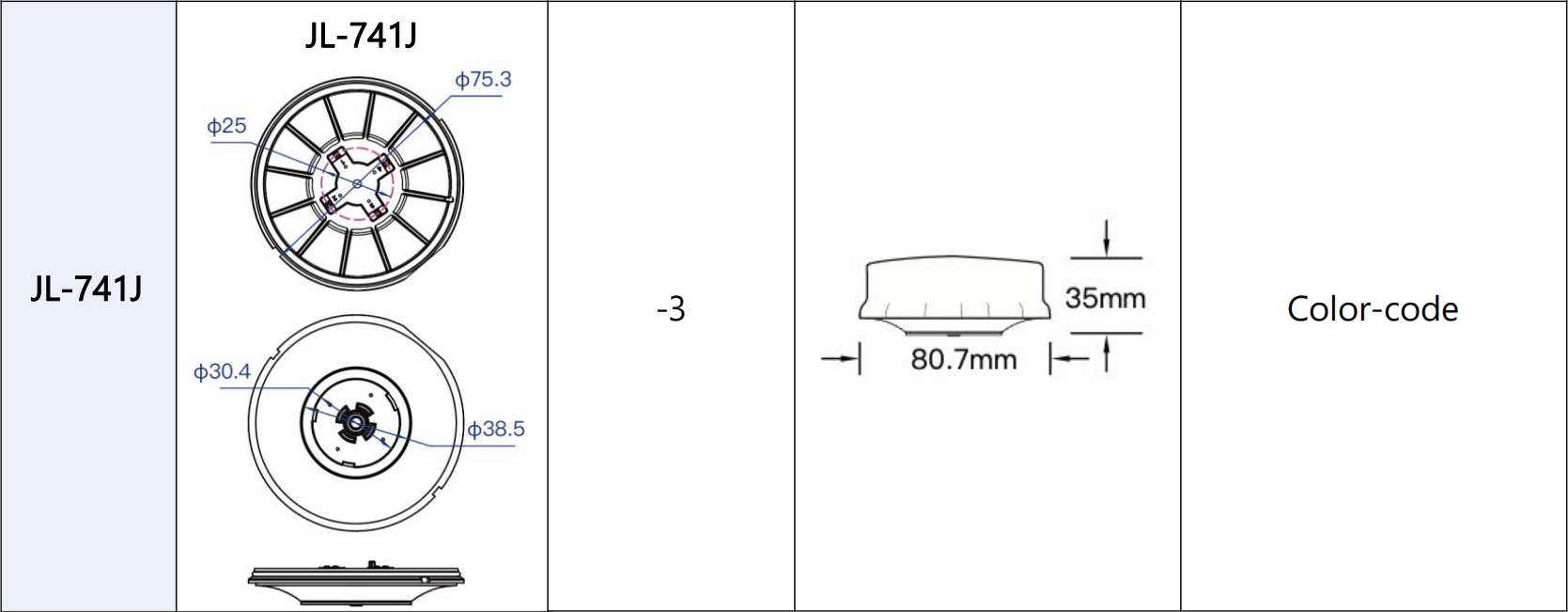

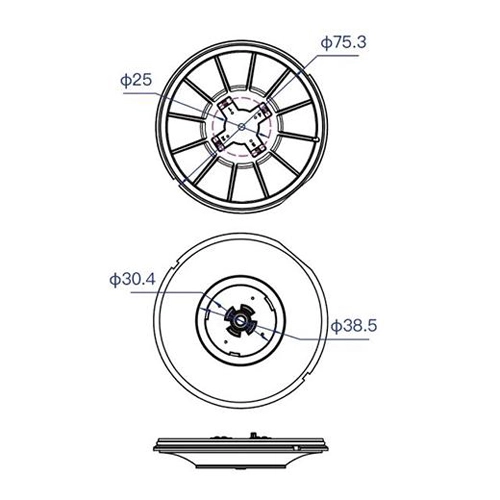

Diameter 75.3mm Pin 25mm Height 12.5mm

The pedestal is fitted with a conventional 700 interface, crafted for the effective surveillance of environmental parameters and seamless incorporation into smart street lighting frameworks. It includes a power outlet that aligns with Zhaga standards, guaranteeing straightforward and safe electrical hookups. Regarding data transfer, the pedestal employs connectors made from tin-coated copper strips to preserve stable signal transmission, which enhances the sophisticated control of automated street lighting systems.

JL-741J Zhaga Interface Light Controller Cover Specifications

Product number	JL-7XXJX
Interface rated voltage	24VDC
Interface rated current	1.5A MAX
Working humidity	96%
Operating temperature	-40°C ~ +70 °C
IP	IP66（Reachable after assembly）

JL-741J Zhaga Interface Light Controller Cover Installation

JL-741J Zhaga Interface Light Controller Cover Installation
