Name: JL-202 NEMA Interface
Brand: Shanghai Long-Join Intelligent Technology Inc.

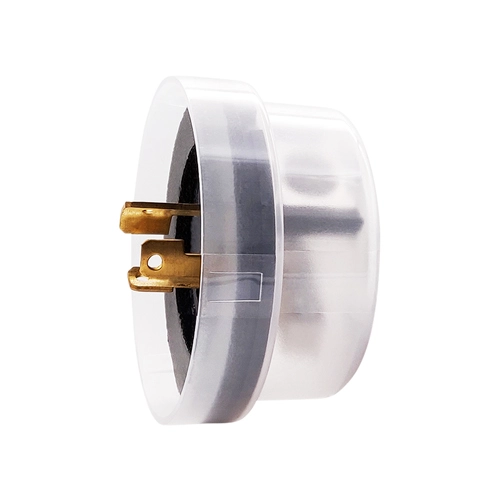

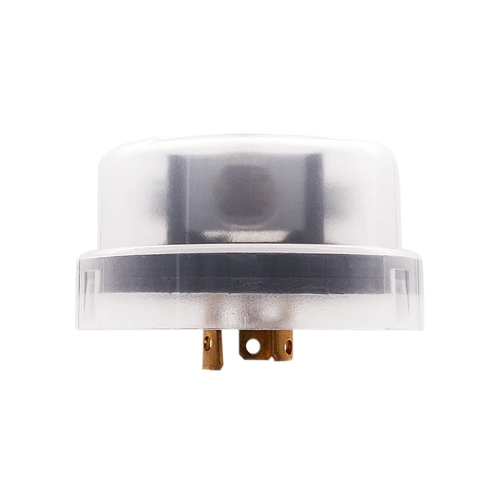

JL-202 NEMA Interface Overview:

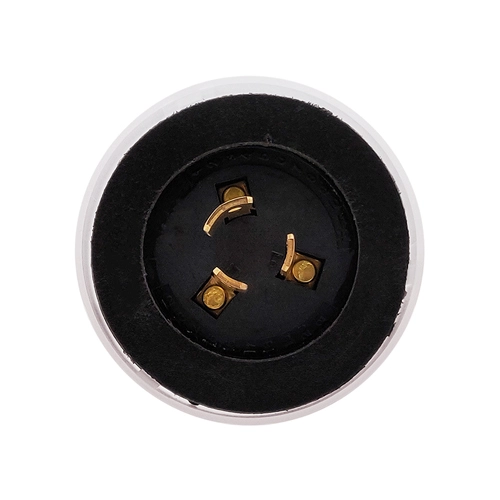

The photocontrol switch is designed to automatically manage street and corridor lighting based on the surrounding light intensity. Constructed with a thermal-bimetallic mechanism, it incorporates a time delay of over 30 seconds to prevent false triggering by spotlight or lightning at night. A temperature compensation feature ensures stable operation across varying environmental temperatures. The device is equipped with three twist-lock terminals, which comply with the ANSI C136.10 specifications and the ANSI/UL773 standard for plug-in, locking type photocontrols used in area lighting.

JL-202 NEMA Interface Specifications

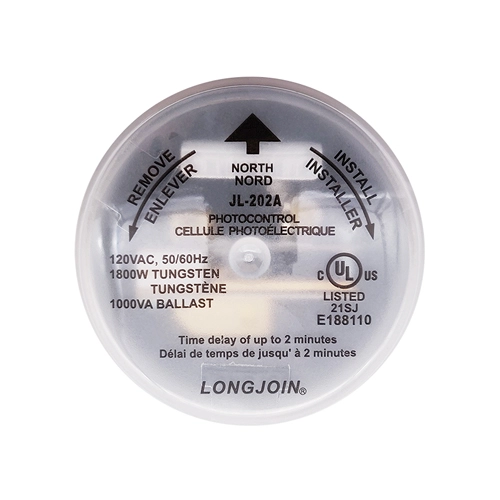

Model No.	JL-202A	JL-202B	JL-202C	JL-202D
Rated Voltage	120VAC	220VAC	208VAC	277VAC
Rated Frequency	50/60Hz
Rated Loading	1800W Tungsten, 1000VA Ballast
Power Consumption	1.5W Max.
Operate Levels	10~20Lx Turn-On / 30~60Lx Turn-Off
Ambient Temperature	-40℃ ~ +70℃
Related Humidity	96%
Clear Enclosure (null)	Available
Fail Mode	Fail-On
Shell material	PC
IP level *	IP54 / IP65 / IP67
Certifications
