Name: JL-701A 0-10V Dimming
Brand: Shanghai Long-Join Intelligent Technology Inc.

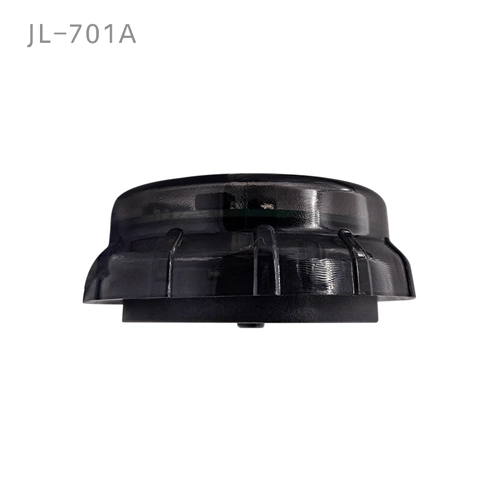

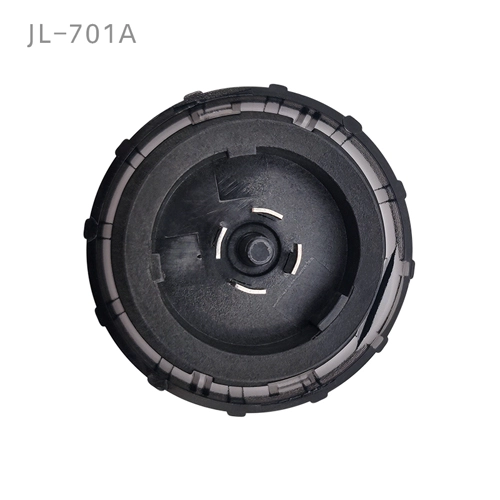

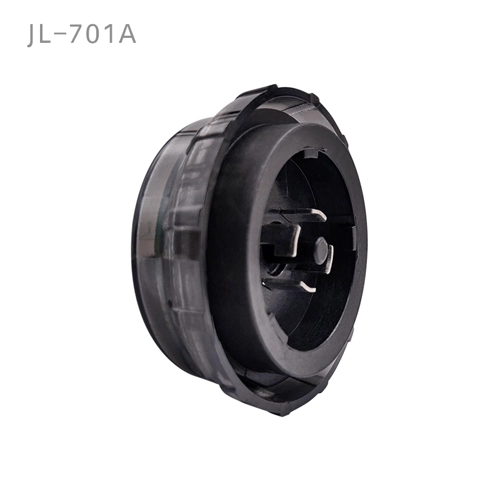

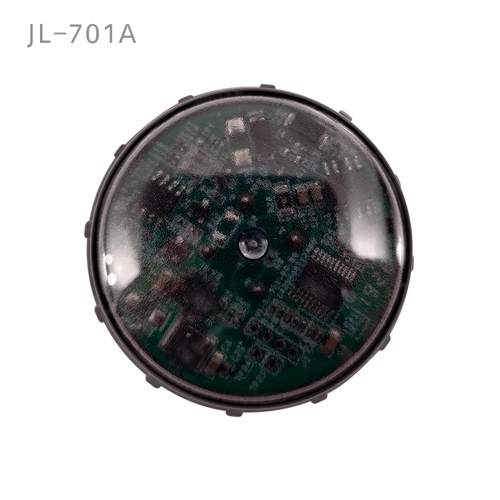

JL-701A 0-10V Dimming Overview:

The JL-701A represents an affordable electronic light controller with a rotary lock, engineered in accordance with the ZHAGA BOOK18 interface specification. It is capable of generating a 0V or 10V dimming signal via its built-in photosensitivity. This controller is ideal for various lighting environments including streets, grassy areas, courtyards, and public gardens.

JL-701A 0-10V Dimming Specifications

Model	JL-701A
Power Supply	Rated voltage：12~24VDC Rated current：3mA
Power Consumption	Day：12~24V/1.5mA Night：12~24V/1.2mA
Dimming	0/10V
Dimming interface	0V or suspended (OD gate output)
Spectral Acquisition Range	350~1100nm，Peak wavelength 550nm
Turn on Illuminance	16Lux（±10）
Turn off Illuminance	64Lux（±10）
Turn on delay	5S
Turn off delay	15S
Electrostatic Immunity	Standard: IEC61000-4-2 Contact Discharge: ±8kV，CLASS A Air Discharge: ±15kV，CLASS A
Mechanical Vibration	IEC60068-2-6
Flammability Level	UL94-V0
Operating Temperature	-40℃~70℃
Storage Temperature	-40℃~85℃
Operating Humidity	5%RH~99%RH
IP Level	IP66
Life	≥ 8000 h
Certifications

JL-701A 0-10V Dimming Installation

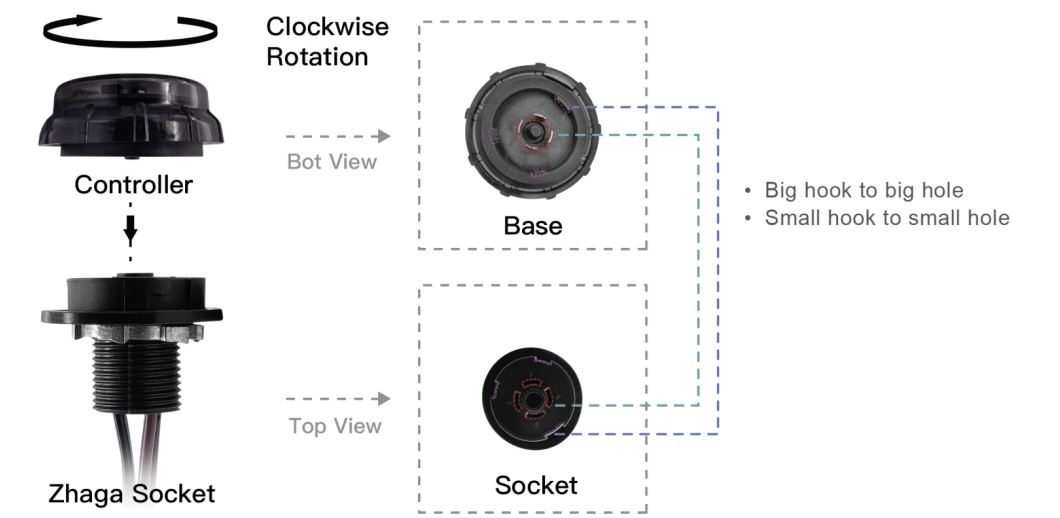

The interface of the product itself has been fool-proof design, the installation only need to tighten the controller directly to the rotatable base, as shown in Figure clockwise after insertion.

JL-701A 0-10V Dimming Installation
