Name: JL-205 NEMA Interface
Brand: Shanghai Long-Join Intelligent Technology Inc.

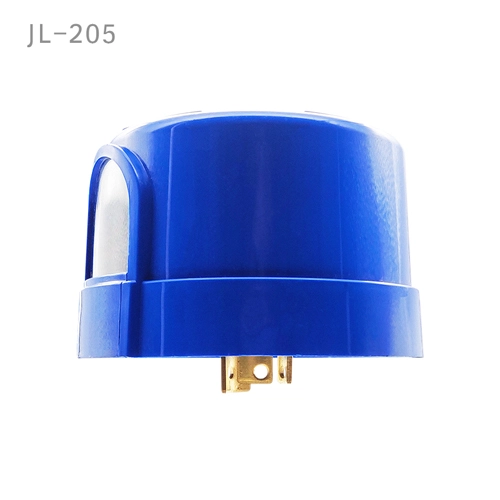

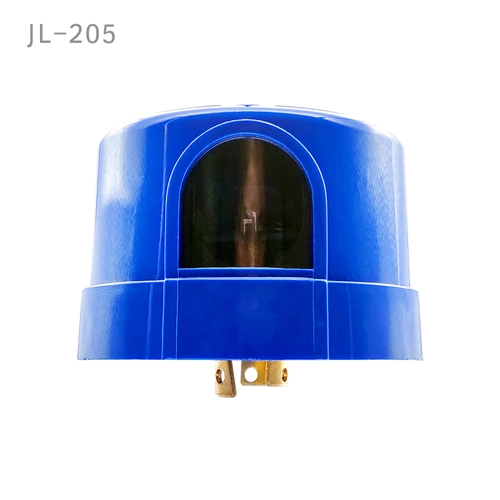

JL-205 NEMA Interface Overview:

The JL-205C photocontrol is suitable for automatically regulating street, garden, corridor, and entrance lighting based on the outdoor light levels. Engineered with electronic circuits that include a phototransistor, and equipped with a surge arrester (MOV), this model is designed for robust performance. Notably, the JL-205C offers a broad voltage range, making it adaptable to nearly all power supply conditions. Additionally, it features a built-in time delay of 3-20 seconds to prevent unnecessary activation from headlights or nighttime lightning. The product is fitted with twist-lock terminals that align with ANSI C136.10 standards and the ANSI/UL773 specification for plug-in, locking type photocontrols used in area lighting. Moreover, the JL-205-12D/24D variants are designed for DC applications, expanding the product’s utility.

JL-205 NEMA Interface Specifications

Model No.	JL-205C	JL-205-12D	JL-205-24D
Rated Voltage	120~277VAC	12VDC	24VDC
Rated Frequency	50/60Hz	-
Applicable Voltage Range	105~305VAC	-
Relay	15A
Rated Loading	1000W Tungsten, 1800VA Ballast, 8A@120VAC/5A@208-277V e-Ballast	75W Tungsten 75VA Ballast 2A e-Ballast	150W Tungsten 150VA Ballast 2A e-Ballast
Power Consumption	3W@120V	-	-
Operate Levels	10~20Lx Turn-On / 30~60Lx Turn-Off
Ambient Temperature	-40℃ ~ +70℃
Related Humidity	96%
Fail Mode	Fail-On
Shell material	optional Sandwich cover
High protection	Sandwich cover（optional）
IP level	IP54 / IP65 / IP67
