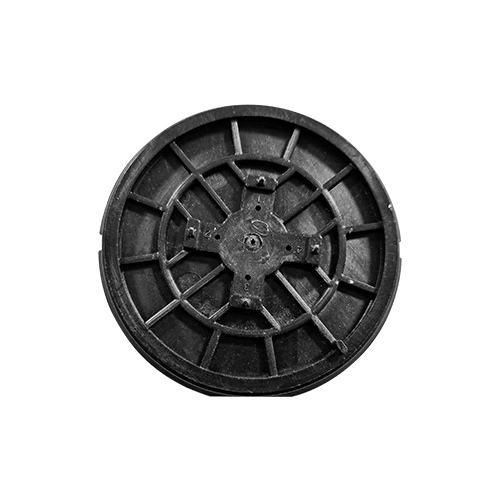

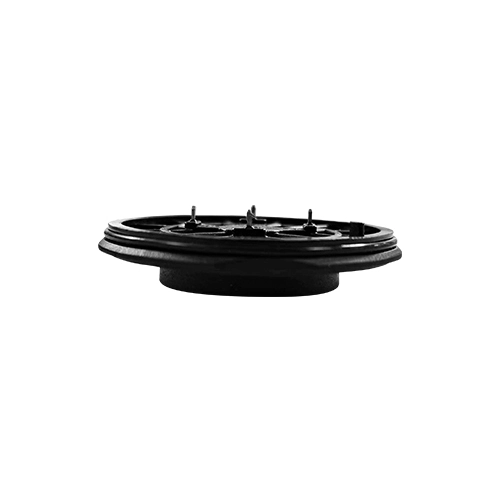

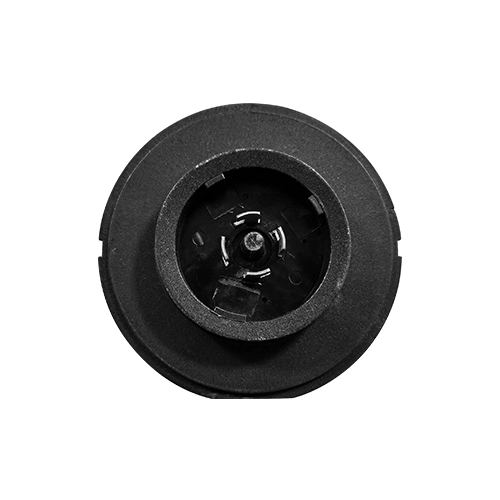

JL-731J Zhaga Interface Light Controller Cover

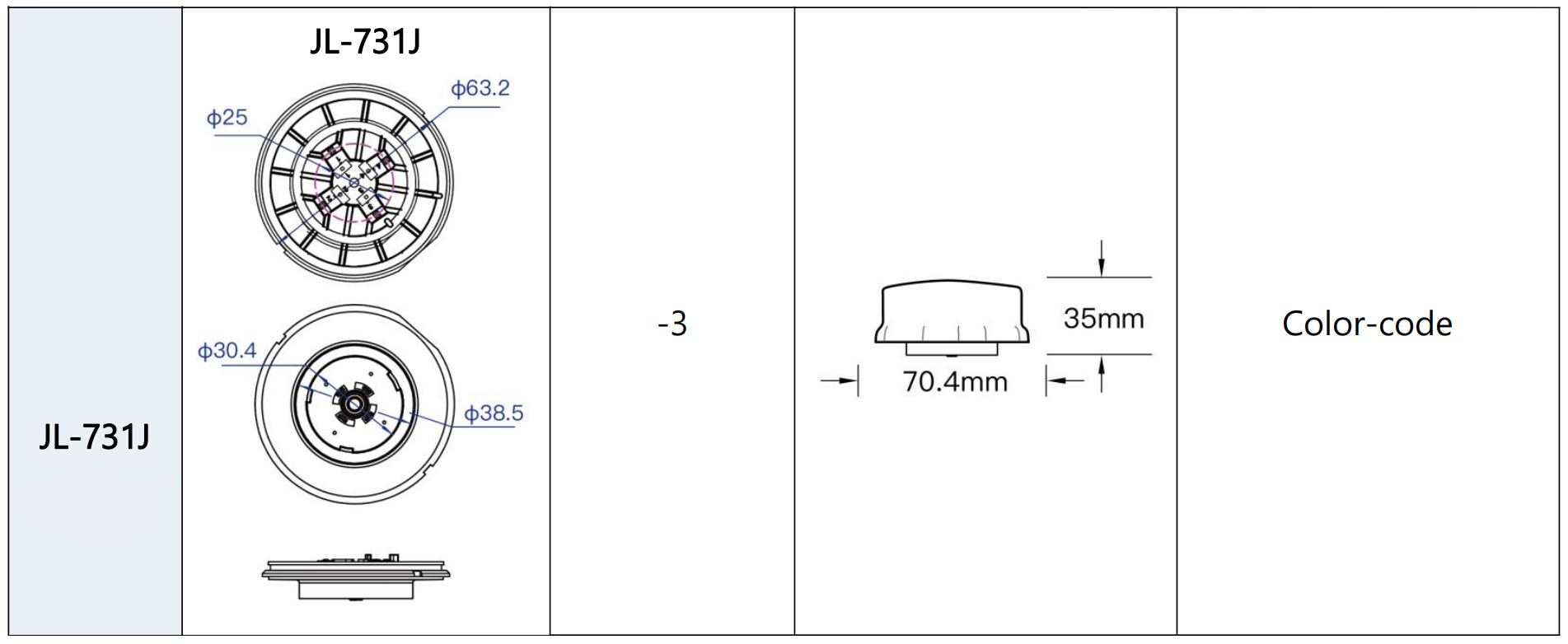

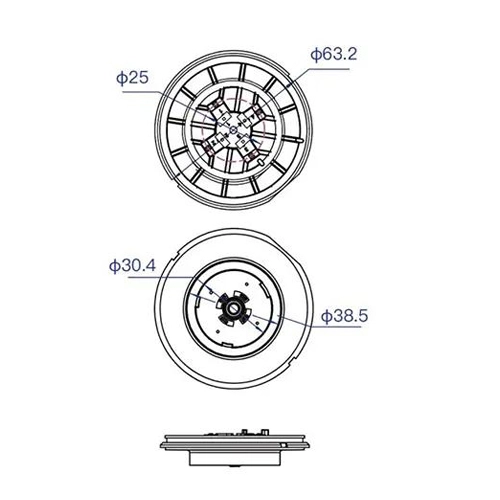

Diameter 63.2mm Pin 25mm Height 12.5mm

The base is equipped with a standard 700 interface, primarily designed for efficient monitoring of environmental conditions and integration with intelligent streetlight systems. It features a Zhaga-standard compatible power socket to ensure convenient and secure electrical connections. For data transmission, the base uses tin-plated copper strip connectors to maintain consistent signal stability, thereby optimizing the intelligent management of streetlight automation equipment.

JL-731J Zhaga Interface Light Controller Cover Specifications

Product number	JL-7XXJX
Interface rated voltage	24VDC
Interface rated current	1.5A MAX
Working humidity	96%
Operating temperature	-40°C ~ +70 °C
IP	IP66（Reachable after assembly）

JL-731J Zhaga Interface Light Controller Cover Installation

JL-731J Zhaga Interface Light Controller Cover Installation
