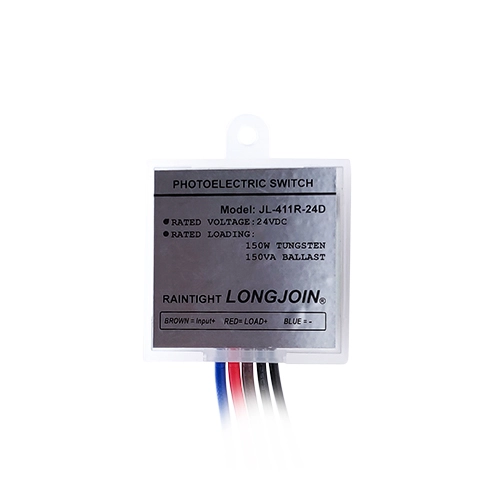

Name: JL-411R-24D Separated Sensor, Improved Electronic
Brand: Shanghai Long-Join Intelligent Technology Inc.

JL-411R-24D Separated Sensor, Improved Electronic Overview:

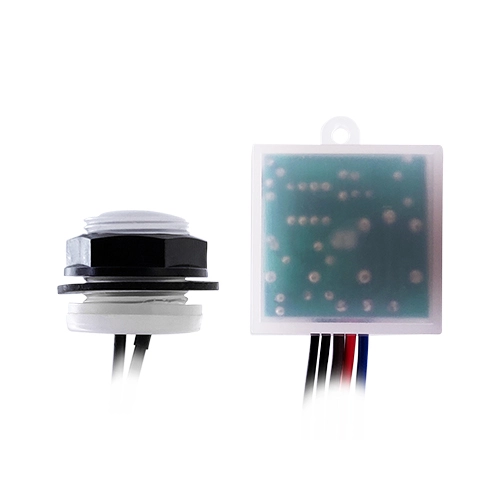

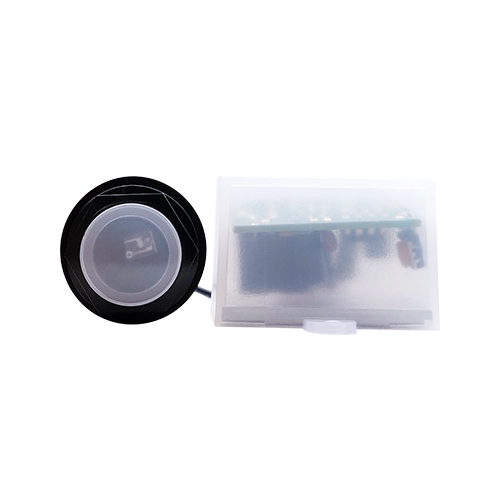

The JL-411R-24D photocontrol is suitable for the automatic regulation of DC voltage lighting, syncing with the environmental light conditions. The R model includes a distinct sensor unit that can be separated.

JL-411R-24D Separated Sensor, Improved Electronic Specifications

Model No.	JL-411(R)-12D	JL-411(R)-24D
Rated Voltage	12VDC	24VDC
Rated Loading	75W
Power Consumption	1W Max.
On-off Levels	5~15Lx Turn-On / 20~80Lx Turn-Off
Ambient Temperature	-40℃ ~ +70℃
Related Humidity	96%
Wire Color Coding	US
Certifications

JL-411R-24D Separated Sensor, Improved Electronic Installation

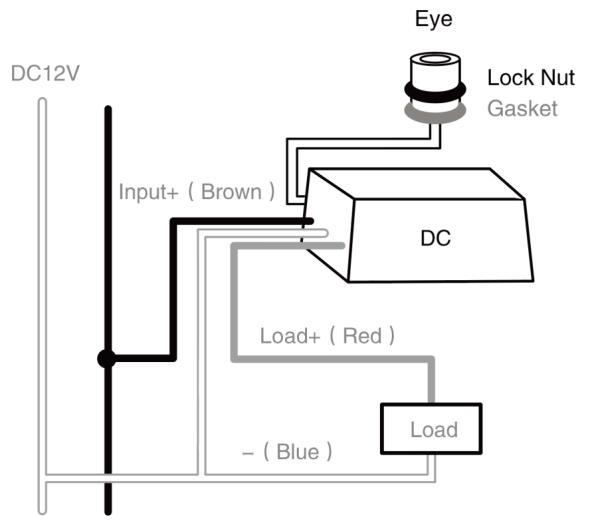

Disconnect power, place screw thread of the photocontrol in knockout hole and fasten with rubber gasket and lock-nut. Wire according to the diagram in below. Do not install the photocontrol with the Photocell facing artificial or reflected light. This may cause the unit to cycle on and off at night.

JL-411R-24D Separated Sensor, Improved Electronic Installation
