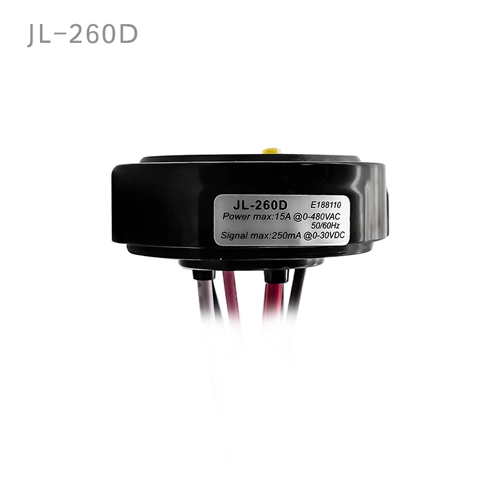

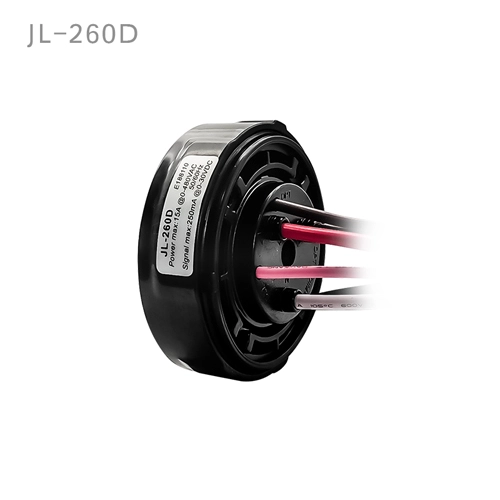

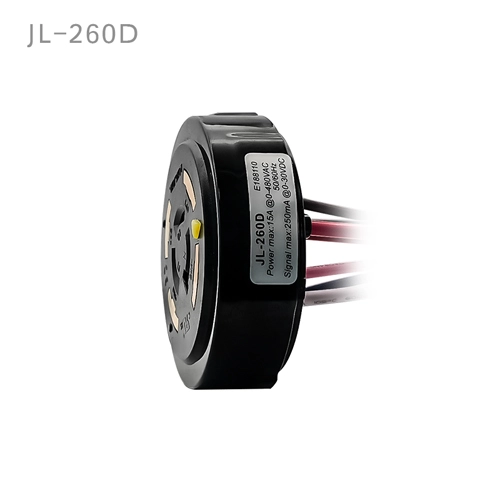

JL-260D Built-In 7-Pin NEMA Socket

Photocontrol Dimming Receptacle, Rotate 360 Degrees, Ultrathin, Waterproof

JL-260D Built-In 7-Pin NEMA Socket Features:

Body made from polycarbonate
Contacts made from phosphor bronze
Gold pad made from Nickel plated phosphor bronze with gold plating per ASTM B 522
High light North pointer

JL-260D Built-In 7-Pin NEMA Socket Overview:

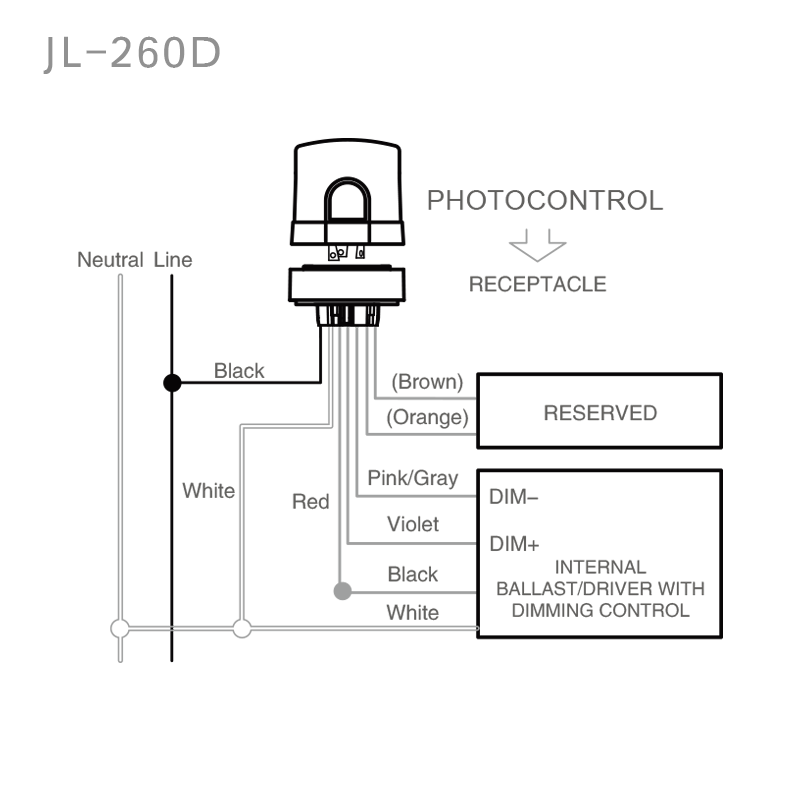

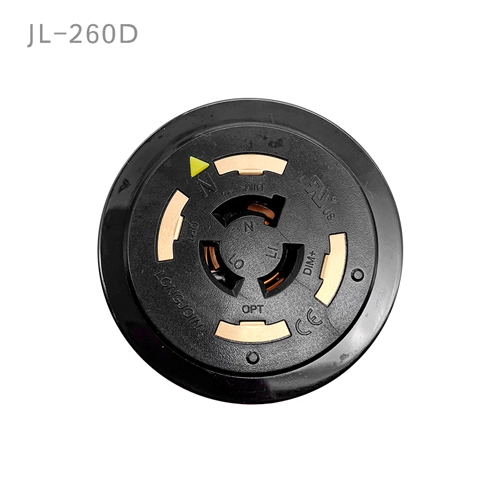

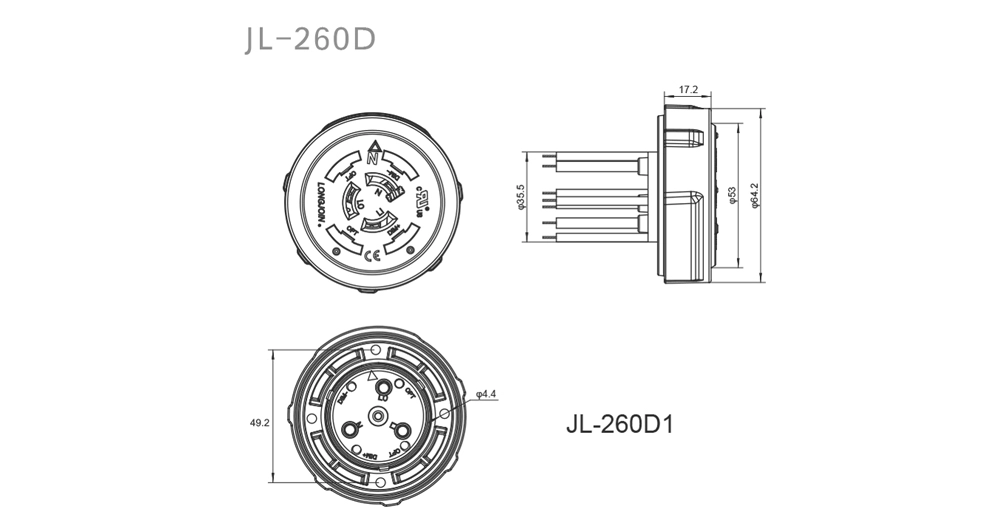

The JL-260D twist-lock photocell socket is crafted for outdoor lighting fixtures to manage LED luminaires with twist-lock photocells. It features four gold-plated, arc-shaped contact tabs on its top surface, aligning with the spring contacts of twist-lock photocells (ANSI C136.41), and is equipped with four signal wires at the rear. The socket stands out for its high-visibility compass for directional orientation, superior waterproofing, and an ultra-thin casing design. It complies with the insert and twist-lock photocell standards set by ANSI C136.10, ANSI C136.41, and ANSI/UL773 for area lighting applications. The JL-260D is available in two models: the D1, which is a one-piece structure with external threading for installation, and the D2, a two-piece design for internal threading installation.

JL-260D Built-In 7-Pin NEMA Socket Overview:

JL-260D Built-In 7-Pin NEMA Socket Specifications

Model No.	JL-260D
Applicable Volt Range	0~480VAC
Rated Frequency	50/60Hz
Power Loading	15A
Signal Control	0-30 VDC, 250 mA Max
Lead	16AWG/14AWG 6" min
Ambient Temperature	-40°C ~ +70°C
Related Humidity	96%
Certifications	ANSI C136.41-2013

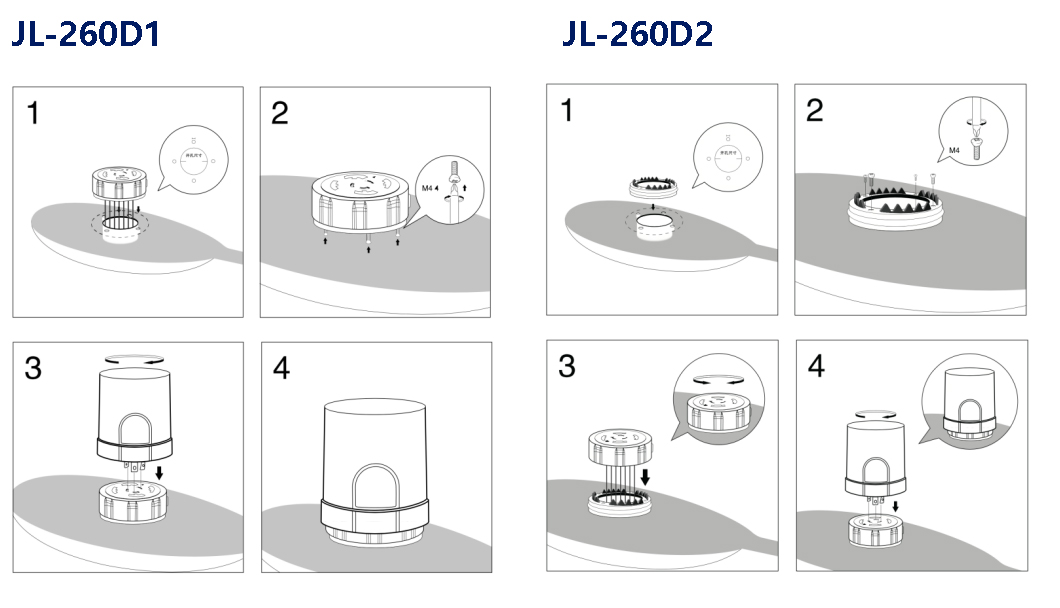

JL-260D Built-In 7-Pin NEMA Socket Installation

JL-260D Built-In 7-Pin NEMA Socket Installation

JL-260D Built-In 7-Pin NEMA Socket Installation
