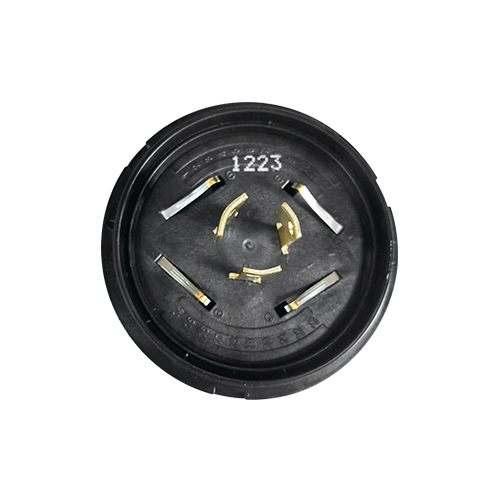

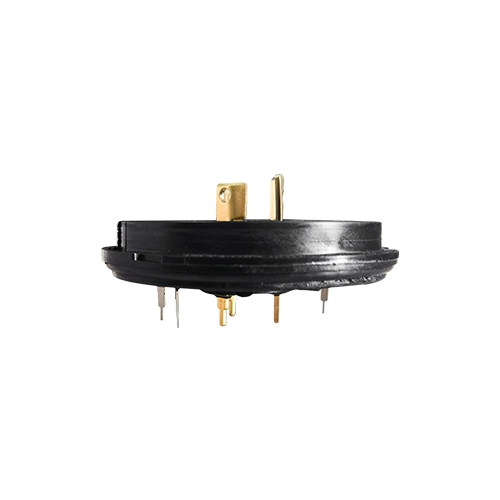

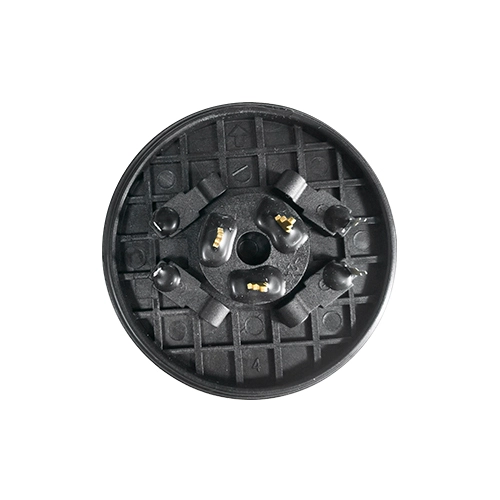

JL-241J NEMA Interface Light Controller Cover

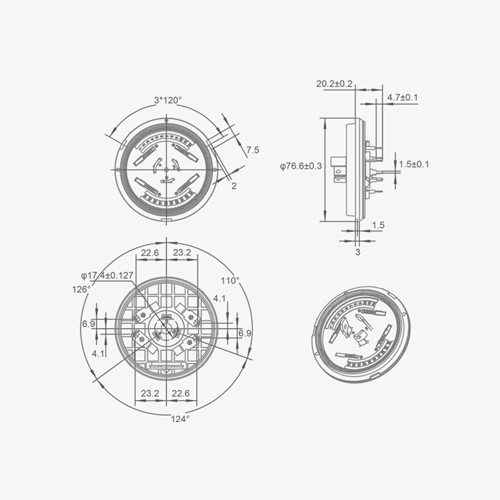

Diameter 76.6mm Height 11.7mm

The single-lamp controller base is designed with 5-pin and 7-pin NEMA interfaces, primarily for use in lighting energy-saving controls and controllers for embedded electronic products. The power connection section uses a standard NEMA plug with a twist-lock feature to ensure a secure connection. The signal connection utilizes gold-plated spring contacts to guarantee stable signal transmission, thereby achieving intelligent control of lighting equipment.

JL-241J NEMA Interface Light Controller Cover Specifications

Model No.	JL-241J
Rated Voltage	Max 480Vac
Rated Frequency	50/60Hz
Rated Loading	15A
Signal Control	0-30 VDC, 250 mA Max
IP	IP66 (Reachable after assembly)
Material Quality	PBT
Ambient Temperature	-40℃ ~ +70℃

JL-241J NEMA Interface Light Controller Cover Installation

JL-241J NEMA Interface Light Controller Cover Installation
