Twist Lock Photocell

Longjion Intelligence has launched the JL-2 and JL-7 series of photocontrollers. The JL-2 series, based on the NEMA interface, encompasses rotary lock thermal, multi-voltage analog electronic, digital electronic, and smart cloud-connected types, all complying with ANSI standards. The products feature a cylindrical design with a transparent light-sensing window and rotary lock brass plugs, and some models are equipped with gold-plated contacts. The JL-7 series, on the other hand, adheres to Zhaga standards, offering automatic brightness adjustment, remote monitoring support, and multiple control modes including light sensing and microwave sensing. It is suitable for indoor and outdoor lighting as well as luminaire integration, simplifying the installation process. Both series boast multiple sensing methods, strong adaptability, flexible installation, high compatibility, and energy-saving features, enabling on-demand lighting control.

Various Types of Twist Lock Photocell

Model No.	Voltage	Typical Loading	Photosensitive Element	Parameter Factory Setting	IP Grade	ANSI
JL-202	Single voltage	≤1800W	CdS Photocell	—	IP54	ANSI C136.10
JL-205C	Multi-volts	≤1000W	Phototransisitor	—	IP54/65/67	ANSI C136.10
JL-207	Multi-volts	≤1000W	IR-filtered Phototransistor	Customizable	IP54/65/67	ANSI C136.10
JL-214B	Multi-volts	≤1000W	Phototransisitor	—	IP54	ANSI C136.10
JL-215C	Multi-volts	≤1000W	Phototransisitor	—	IP54/65/67	ANSI C136.10
JL-216	Multi-volts	≤1000W	IR-filtered Phototransistor	Customizable	IP54/65/67	ANSI C136.10
JL-217	Multi-volts	≤1000W	IR-filtered Phototransistor	Customizable	IP54/65/67	ANSI C136.10
JL-224B	Multi-volts	≤1000W	Phototransisitor	—	IP54	ANSI C136.10
JL-235C	Multi-volts	≤1000W		—	IP54/65/67	ANSI C136.10
JL-236CG	Multi-volts	≤1000W		—	IP54/65/67	ANSI C136.10
JL-241C	Multi-volts 0~10V	≤1000W		Remote Manage	IP65/67	ANSI C136.4.1
JL-242C	Multi-volts 0~10V	≤1000W		Remote Manage	IP65/67	ANSI C136.4.1
JL-243C	Multi-volts 0~10V	≤1000W	Phototransistor	Remote Manage	IP65/67	ANSI C136.4.1
JL-245CG	Multi-volts 0~10V	≤1000W		Remote control + adaptive mode	IP67	ANSI C136.4.1
JL-245CN	Multi-volts 0~10V	≤1000W		Remote control + adaptive mode	IP67	ANSI C136.4.1
JL-245CZ	Multi-volts 0~10V	≤1000W		Remote control + adaptive mode	IP67	ANSI C136.4.1
JL-246CG	Multi-volts 0~10V	≤1000W		Remote control + adaptive mode	IP67	ANSI C136.4.1
JL-246CR	Multi-volts 0~10V	≤1000W		Remote control + adaptive mode	IP67	ANSI C136.4.1
JL-251C	Multi-volts Dail	≤1000W		Remote Manage	IP67	ANSI C136.4.1
JL-252C	Multi-volts Dail	≤1000W		Remote Manage	IP67	ANSI C136.4.1
JL-253C	Multi-volts Dail	≤1000W		Remote Manage	IP67	ANSI C136.4.1

Model / Function	Dimming	Sensing Type	Midnight	Communication	*Diameter Height（mm）**	Remarks
JL-701A	0/10V	light-sensitive	/	/	49.4*20
JL-711A1	0～10V	light-sensitive	/	/	49.4*20
JL-711A2	0～10V	light-sensitive	Factory preset	/	49.4*20
JL-712B2	0～10V	light-sensitive+microwave	customize	/	50.4*35	Application environment: Indoor Microwave frequency: 5.8GHz Microwave hanging height: ＜ 15m Induction radius: 6~10 meters
JL-712A3	0～10V	light-sensitive+microwave	/	/	50.4*35	Application environment: indoor + outdoor Microwave frequency: 5.8GHz Microwave hanging height: ＜ 15m Induction radius: 6~10 meters Tail patch L: support microwave linkage
JL-721A1	DALI2.0	light-sensitive	/	/	49.4*20
JL-721A2	DALI2.0	light-sensitive	Factory preset	/	49.4*20
JL-721NP	DALI2.0	light-sensitive	customize	NB-IoT	70.4*35

Applications/Cases of Twist Lock Photocell

Haiyan Project

1. Geographic Position

Haiyan County is located in the northwest of Hangzhou Bay, belonging to Jiaxing City in Zhejiang Province, 118 km from Shanghai and 98 km from Hangzhou. It has 9 towns (subdistricts). It has a land area of 534.73 square kilometers and a population of 430,900

2. Project Context

Street lamp management has been managed by the State grid into direct government management
It has been listed as a key project of Haiyan County's "13th Five-Year Plan"
Local enterprises are determined to carry out construction for the project
It will be carried out in stages, from the town (street) to the urban area
The 106 street lights (including 6 security monitoring street lights) in the first phase of the project have been completed. The government invested 350,000 yuan in the first phase of the project, including lamps, control equipment and street light control system, excluding construction and installation

3. Project Staging

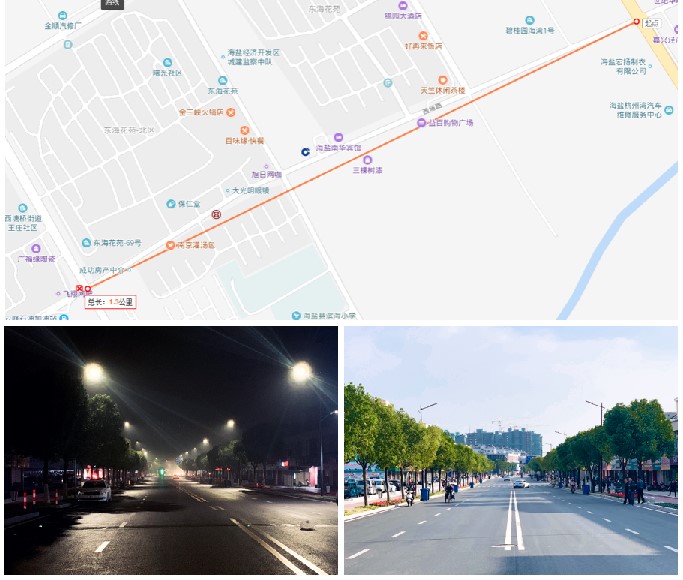

Phase I of the project (completed) : Xichang Road in the Development Zone: two-way four-lane road, from Binhai Beiyuan to East-West Avenue, the length of the whole line is about 1.7km; Street lights: 120W LED street lights 53, 60W LED street lights 53
The second phase of the project (in progress) : 3,650 units in 9 towns (streets) under its jurisdiction
Project III (Plan) : urban renovation total 10,525 street lights

Applications/Cases of Twist Lock Photocell

Electricity Energy Saving Data Statistics

Taking 10,000 street lights in a city as an example, the average daily light is turned on for 11 hours, and the electricity bill is 0.86 yuan /kWh.

Name	Traditional lamps consume electricity	Primary energy saving	Secondary energy saving	Integrated energy saving
Name	250W high-pressure sodium lamp (total power of light source is calculated by 275W)	100W LED ordinary street lamp	Street lights with light controllers	Integrated energy saving
Annual Electricity consumption (kWh)	11041300	4015000	2796600	8244600
Annual Electricity Charge (Yuan)	9495475.00	3452900.00	2405106.86	/
Annual electricity savings	/	6042575.00	1047793.14	7090368.14
fractional energy saving	/	64%	30%	75%

Note: The secondary energy saving power of 70W is dynamic power, that is, the illuminance is gradually selected according to the environmental changes in different time periods.
