NEMA Dimming Receptacle

NEMA Dimming Receptacle series is specifically designed for outdoor LED lighting fixtures. It features 2 or 4 gold-plated contact pads that are compatible with the spring contacts of twist-lock photocontrols, and is equipped with 2 or 4 signal wires on the back. This series meets the ANSI C136.10, C136.41, and ANSI/UL773 standards, making it suitable for applications with plug-in and twist-lock photocontrols in area lighting.

NEMA Dimming Receptacle series is specifically designed for outdoor LED lighting fixtures. It features 2 or 4 gold-plated contact pads that are compatible with the spring contacts of twist-lock photocontrols, and is equipped with 2 or 4 signal wires on the back. This series meets the ANSI C136.10, C136.41, and ANSI/UL773 standards, making it suitable for applications with plug-in and twist-lock photocontrols in area lighting.

Various Types of NEMA Dimming Receptacle

Model No.	North-Mark (US/UK)	Rotation Support	Dimming Pad No.	Rotary Limit Function	Lantern Assm./ Wall Mount	Power Volt Range
JL-240XA	US	N	4	-	L	0~480VAC
JL-240TXA	US	N	4	-	L	0~480VAC
JL-240FXA	US	Y	4	-	L	0~480VAC
JL-240TLXA	US	Y	4	Y	L	0~480VAC
JL-240TZA	US	Y	4	N	W	0~480VAC
JL-240XB	US	N	2	-	L	0~480VAC
JL-240TXB	US	N	2	-	L	0~480VAC
JL-240FXB	US	N	2	-	L	0~480VAC
JL-240TLXB	US	Y	2	Y	L	0~480VAC
JL-240XHA	US	N	4	-	L	0~480VAC
JL-240XHB	US	N	2	-	L	0~480VAC
JL-240SXB	US	N	2	-	L	0~480VAC
JL-240TZB	US	Y	4	N	W	0~480VAC
JL-250T	US	Y	4	Y	L	0~480VAC
JL-260C	US	Y	4	Y	W	0~480VAC
JL-260D	US	Y	4	Y	L	0~480VAC

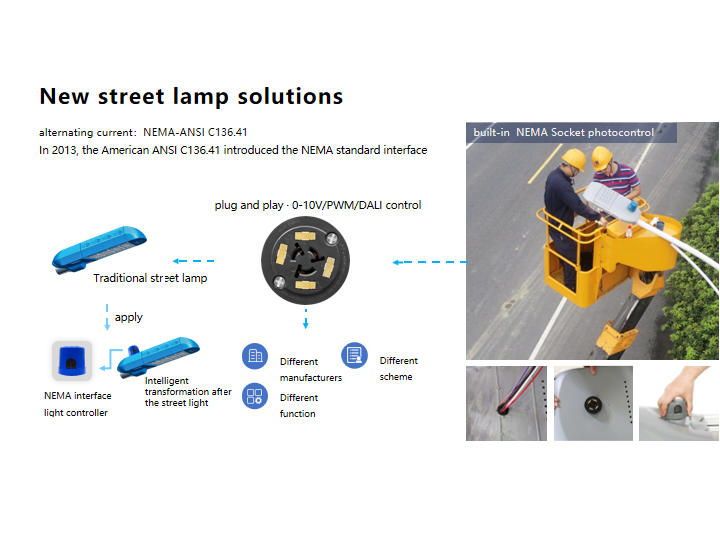

Applications/Cases of NEMA Dimming Receptacle

Applications/Cases of NEMA Dimming Receptacle
