NEMA 3PIN Receptacle

The NEMA 3P twist-lock photocontrol switch socket series is tailored for outdoor lighting fixtures, enabling efficient power control of the luminaires via twist-lock photocontrols or switches. Equipped with three locking terminals, this product meets the ANSI C136.10 and ANSI/UL773 standards, providing support specifically for plug-in and twist-lock photocontrols designed for area lighting.

The NEMA 3P twist-lock photocontrol switch socket series is tailored for outdoor lighting fixtures, enabling efficient power control of the luminaires via twist-lock photocontrols or switches. Equipped with three locking terminals, this product meets the ANSI C136.10 and ANSI/UL773 standards, providing support specifically for plug-in and twist-lock photocontrols designed for area lighting.

Various Types of NEMA 3PIN Receptacle

Model No.	North-Mark (US/UK)	Rotation Support	Dimming Pad No.	Rotary Limit Function	Lantern Assm./ Wall Mount	Power Volt Range
JL-200X	US	N	-	-	L	0~480VAC
JL-200Z	US	Y	-	N	W	0~480VAC
JL-210	UK	-	-	-	L	0~480VAC
JL-210K	UK	-	-	-	W	0~480VAC
JL-220	US	Y	-	Y	L	0~480VAC
JL-230	US	Y	-	Y	L	480VAC Max
JL-230F	US	Y	-	Y	L	480VAC Max

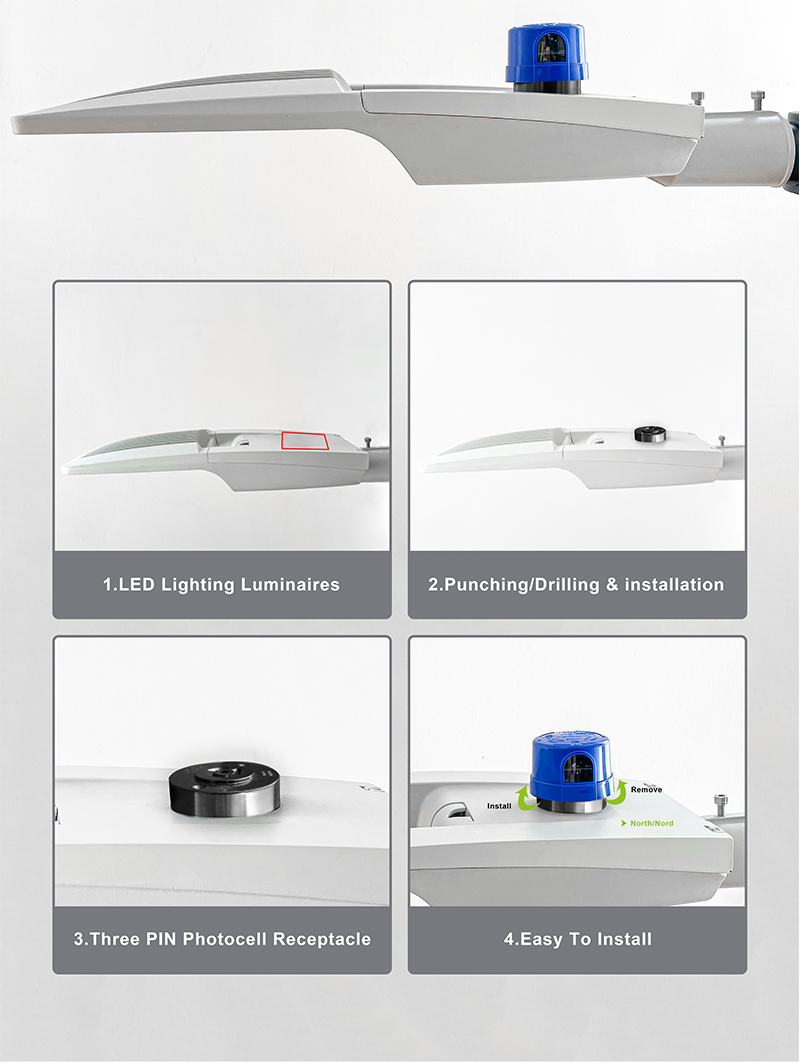

Applications/Cases of NEMA 3PIN Receptacle

Applications/Cases of NEMA 3PIN Receptacle
