Zhaga Interface Receptacle

The zhaga interface Receptacle, which conforms to the Zhaga Book 18 standard, is a standardized interface specifically designed for LED lighting fixtures, particularly suitable for outdoor lighting applications. It adheres to the standards established by the Zhaga Consortium, ensuring uniformity in mechanical structure, electrical characteristics, and communication protocols, thereby enabling "plug-and-play" installation of sensors/communication modules. This socket is multifunctional, supporting intelligent features such as remote control, photocontrol, and more. Additionally, it possesses waterproof and dustproof properties, ensuring stable operation in harsh outdoor environments.

The zhaga interface Receptacle, which conforms to the Zhaga Book 18 standard, is a standardized interface specifically designed for LED lighting fixtures, particularly suitable for outdoor lighting applications. It adheres to the standards established by the Zhaga Consortium, ensuring uniformity in mechanical structure, electrical characteristics, and communication protocols, thereby enabling "plug-and-play" installation of sensors/communication modules. This socket is multifunctional, supporting intelligent features such as remote control, photocontrol, and more. Additionally, it possesses waterproof and dustproof properties, ensuring stable operation in harsh outdoor environments.

Various Types of Zhaga Interface Receptacle

Model

Characteristic

dimming

Power Volt Range

JL-700

Conventional type

DALI

24VDC

JL-700X

Conventional 700 (without protective cover)

DALI

24VDC

JL-700-K4/K5

Conventional 700 with retainer plate and washer

DALI

24VDC

JL-700W

Leadless version

DALI

24VDC

JL-700S

Short thread

DALI

24VDC

JL-700T

Spring needle plate

--

24VDC

JL-710

Power version

0-10V

Input voltage 120-277VAC

Output voltage 24VDC

JL-700M

US version

0-10V

30VDC

JL-700M-K4

US version with retainer plate and washer

0-10V

30VDC

JL-700L

Cables version

DALI

24VDC

JL-770W

Leadless version

0-10V

24VDC

JL-770L

Cables version

0-10V

30VDC

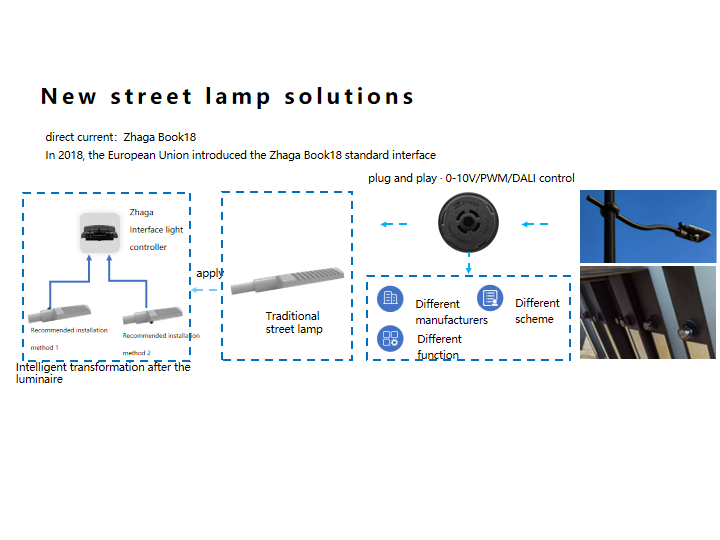

Applications/Cases of Zhaga Interface Receptacle

Applications/Cases of Zhaga Interface Receptacle
